Dogtrace d-guard mini photo trap

Marek Matějka

Do you need help? / Marek Matějka

Product features Dogtrace d-guard mini photo trap

photo resolution 20Mpx waterproof camera video resolution 1080px display size 2 inches viewing angle 90° number of diodes 10 IR diodes 940 color photos

Product Details Dogtrace d-guard mini photo trap

The photo trap remains in standby mode and activates independently within 0,4 s of motion detection.

During the day, the photo trap takes colour photos or videos. At night or in low light conditions, the camera's infrared LEDs are activated to act as an invisible flash, allowing black and white photos and videos to be taken.

The photo trap is perfectly waterproof and snowproof, so it can be left outdoors for months while automatically saving photos or videos in digital format to anSD memory card.

Using the photo trap:

  • wildlife tracking or tracking while hunting
  • surveillance and intrusion prevention in homes, shops, offices, agriculture, etc.

Features of d-guard mini photo trap:

  • 10 invisible 940nm IR LEDs do not emit any type of flash or visible light
  • powered by AA 1,5 batteries (not included) or DC 6V adapter (not included)
  • lower gloss design to allow for more camouflaged placement
  • attaches to a screw stand, tripod thread or belt
  • tripod allows the camera to be mounted on trees, walls, ceilings
  • standby battery lasts up to 6 months
  • programmable on/off time
  • waterproof photo trap with IP65 protection
  • 20 Mpx photos and 1080 HD video with sound
  • adjustable video length 3 s to 1 h
  • 5 s to 1 h frame interval
  • burst mode up to 3 photos
  • up to 32 GB SD card
  • integrated USB port
  • time-lapse function

For more information on setting up and operating the photo trap, please refer to the User Manual.

Package contents:

  • photo trap
  • USB cable
  • operating instructions
  • mounting strap

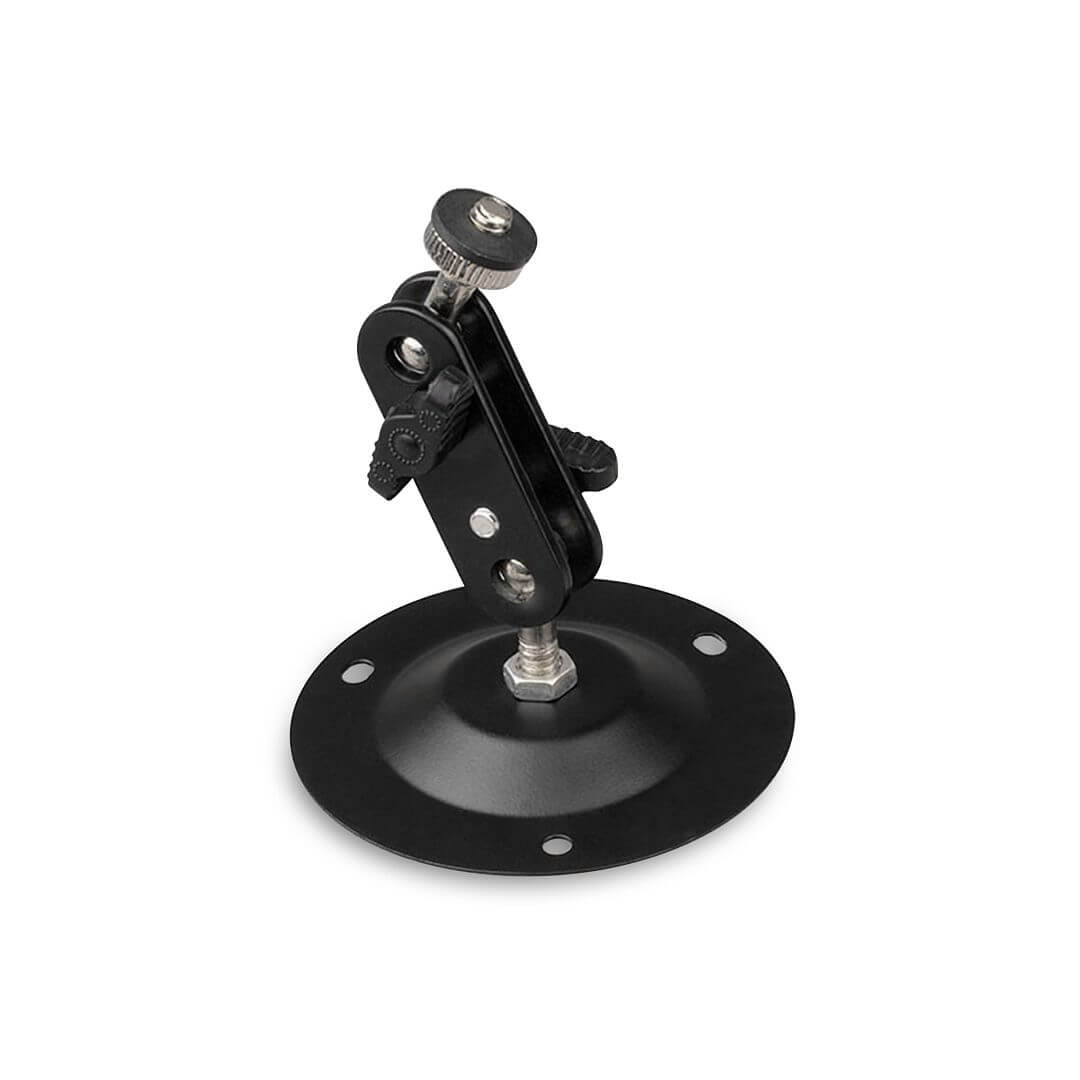

  • stand with screw base
Weight 185 g
Lens hood f/2,2
Lens angle of view 90°
Shutter speed 0,4 s
IR lightning invisible (940nm)
Number of IR LEDs 10
Display 2“ TFT LCD display
Sensor 2 mpx HD CMOS
PIR sensor sensitivity high/medium/low
Maximum range of PIR sensor 15 m
PIR sensor angle 80°
Sound
Memory card SD to 32 GB
Power supply 4× AA 1,5V
Dimensions 105×85×60 mm
Waterproof IP65
Optimum operate temperature –20°C to 60°C
