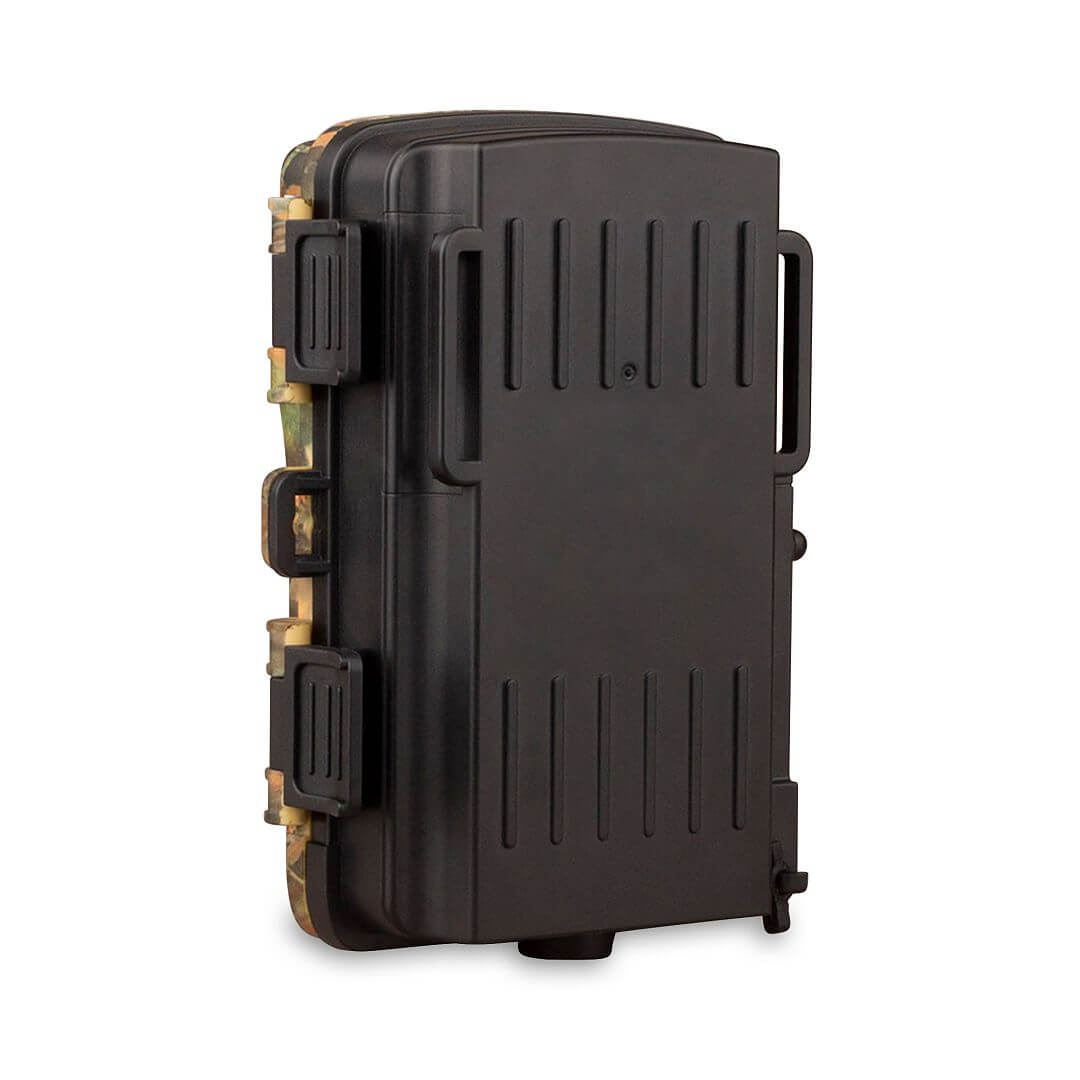

Dogtrace d-guard 940 photo trap

Marek Matějka

Do you need help? / Marek Matějka

Product features Dogtrace d-guard 940 photo trap

photo resolution 20 Mpx waterproof camera video resolution 1080 px display size 2" lens vision 80° number of diodes 42 IR diodes 940nm color photos

Product Details Dogtrace d-guard 940 photo trap

The photo trap remains in standby mode and activates independently within 0,4 s of motion detection.

During the day, the photo trap takes colour photos or videos. At night or in low light conditions, the camera's infrared LEDs are activated to act as an invisible flash, allowing black and white photos and videos to be taken.

The photo trap is perfectly waterproof and snowproof, so it can be left outdoors for months while automatically saving photos or videos in digital format to a MicroSD memory card.

Using the photo trap:

  • wildlife tracking or tracking while hunting
  • surveillance and intrusion prevention in homes, shops, offices, agriculture, etc.

Features of d-guard 940 photo trap:

  • 42 invisible 940nm IR LEDs do not emit any type of flash or visible light
  • powered by 1,5 AA batteries (not included) or 6V DC adapter (not included)
  • lower gloss design to allow for more camouflaged placement

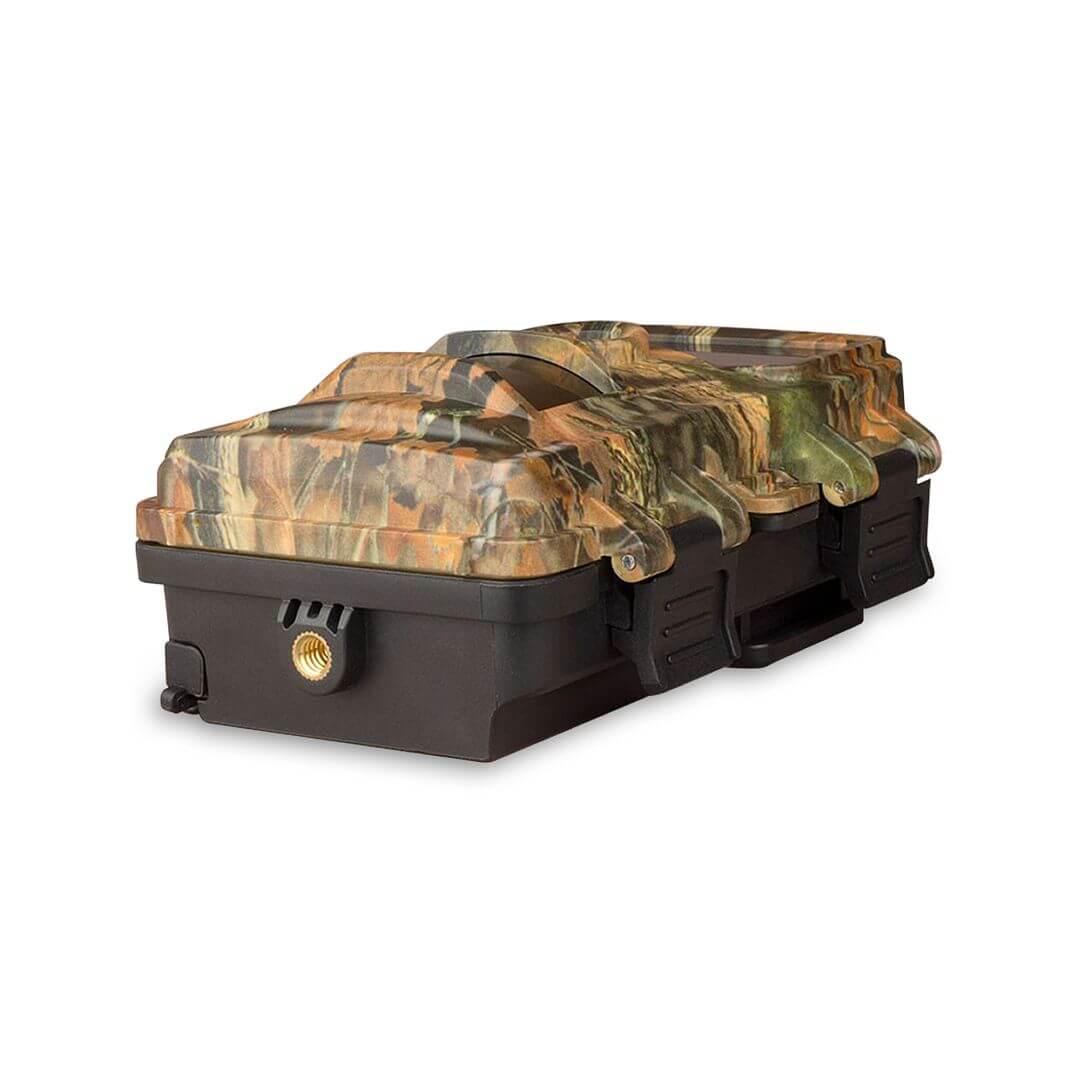

  • attaches to a screw stand, tripod thread or belt

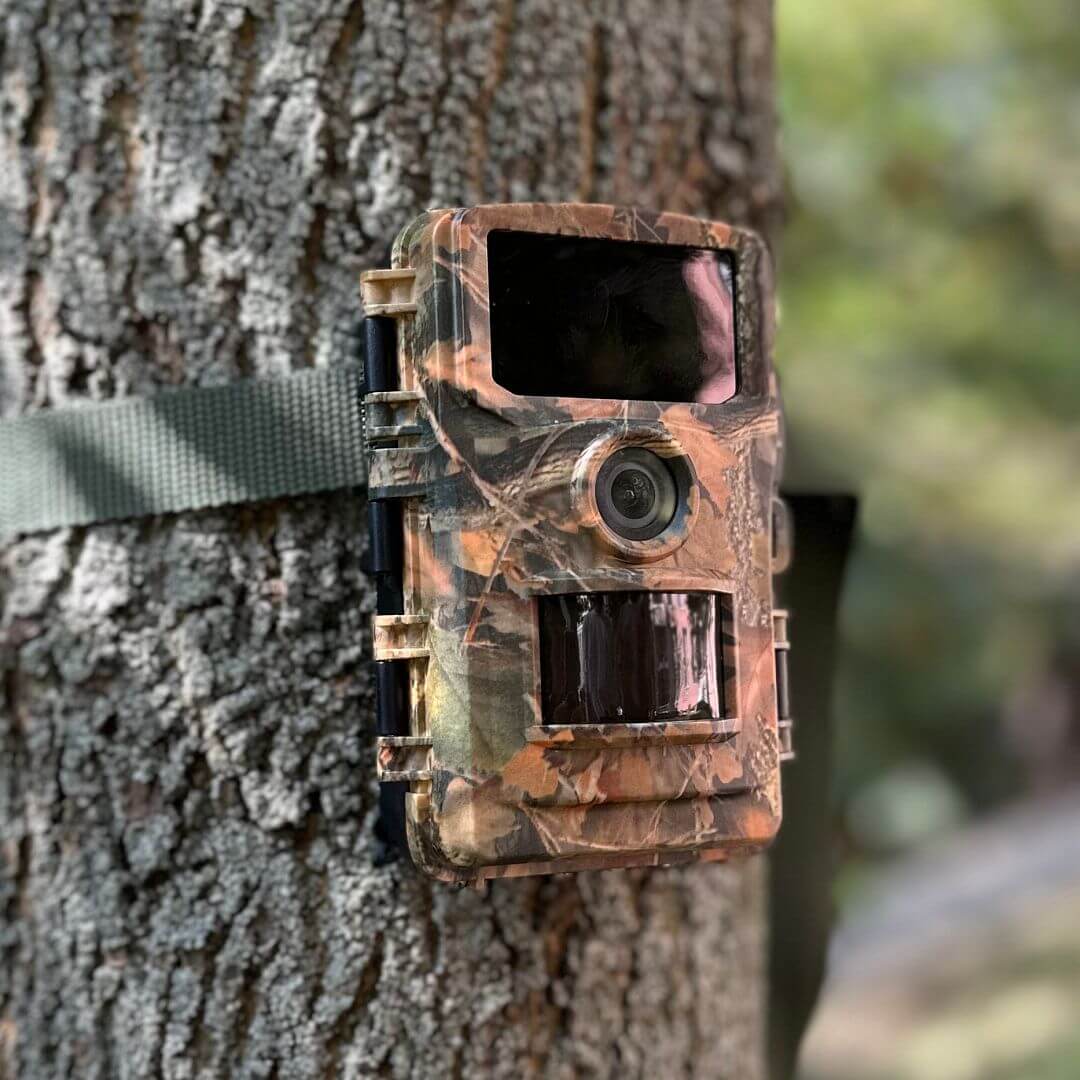

  • tripod allows the camera to be mounted on trees, walls, ceilings
  • standby battery lasts up to 8 months
  • programmable on/off time
  • waterproof photo trap with IP65 protection
  • 20Mpx photos and 1080 HD video with audio
  • adjustable video length 10 sec to 10 min
  • 5 s to 1 hr interval between shots
  • burst mode up to 3 photos
  • MicroSD card up to 32 GB
  • integrated USB port
  • time-lapse function

For more information on setting up and operating the photo trap, please refer to the User Manual.

Package contents:

  • photo trap
  • USB cable
  • operating instructions
  • mounting strap

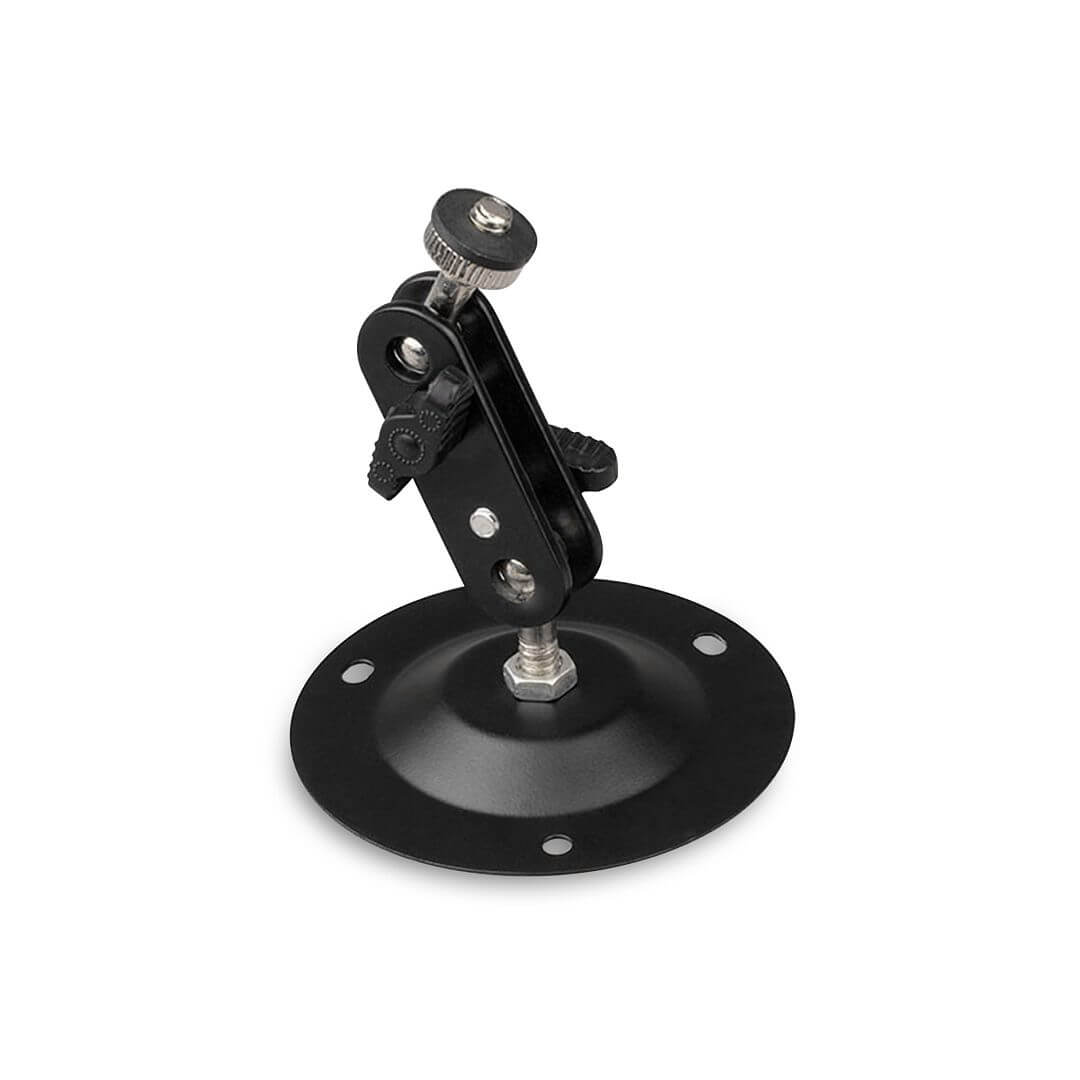

  • stand with screw base
Weight 256 g
Lens hood f/2,0
Lens angle of view 80°
Shutter speed < 0,4 s
IR lightning invisible
Number of IR LEDs 42

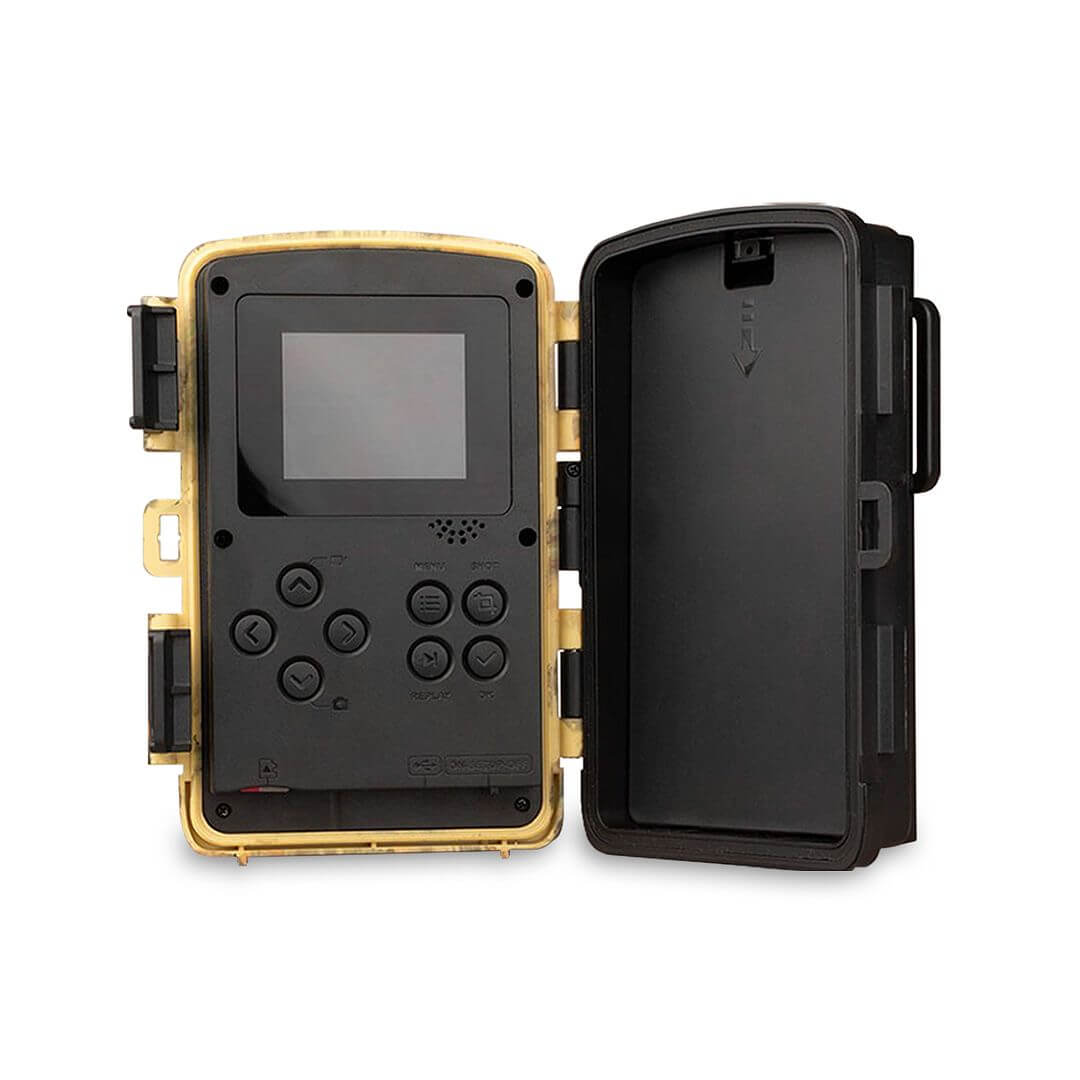

Display 2“ TFT LCD
Sensor 4 mpx CMOS
PIR sensor sensitivity high/medium/low
Maximum range of PIR sensor 25 m
PIR sensor angle 90°
Sound
Memory card microSD to 32 GB
Power supply 4/8× battery AA 1,5V
Dimensions 135×95×55 mm
Waterproof IP65
Optimum operate temperature –20°C to 60°C
Optimum storage temperature –30°C to 70°C
Optimum operating humidity 5 – 95 %
